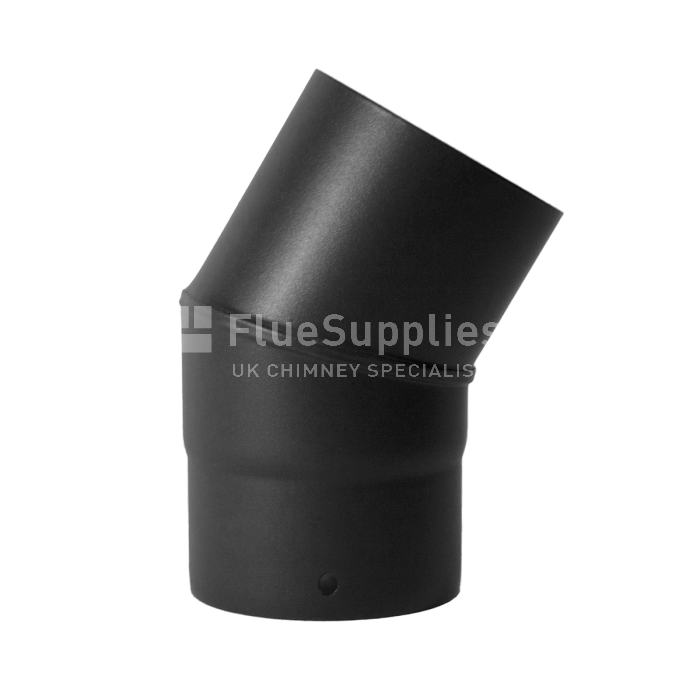

5" 30° Bend Stove Pipe
£45.58 £54.70
In stock
SKU
EWVB3005
- Premium Vitreous Enamel
- 30° Bend/Elbow
- Extremely High Resistence to Heat
5" 30° Bend Stove Pipe
Stove Pipe is generally used to connect from your stove or appliance to either Flexible Flue liner or Twin Wall Insulated Flue.
You will need to use an adaptor to connect your Stove pipe
| Type | Bend/Elbow |
|---|---|
| Material | Stainless Steel |
| Construction | Manufactured in accordance with ISO9001-2008 using 1mm low carbon steel |
| Designation | EN 1856-2 T600 N1 D Vm L80060 G375 NM |
| Internal Diameter | 125mm |
| Fuels | Oil, gas and Solid Fuels, for domestic heating appliances |
Installation Guide
Vitreous should always be installed 3 x the internal diameter away from any combustible materials.
Stove pipe should only be used as a connection piece and never used externally on any property.
Our stove pipe has a compression fit but we would always advise to use a thin layer of fire cement on each joint.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
