6" Adjustable length 560-920mm (316 1mm)
£108.28 £129.94
In stock
SKU
JSSAJ206
- 316 Grade Stainless Steel
- Temperatures up to 600°C
- 560mm - 920mm Adjustable
- Socket and spigot jointing system

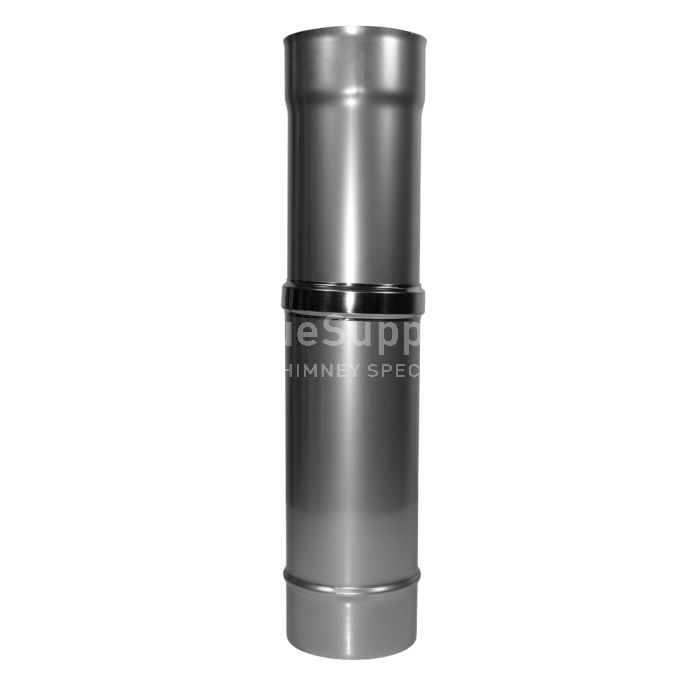

6" 560mm - 920mm Adjustable Length 316 1mm Stove Pipe
560mm-920mm Adjustable Length flue pipe (1mm thick) used to connect from your stove to either flue liner or twin wall insulated rigid flue pipe.
Made From 316 Stainless Steel
| Type | Length |
|---|---|
| Material | Stainless Steel |
| Construction | Single Skin 316 Stainless Steel. 1mm thickness |
| Designation | EN 1856-1 T600 N1 D V2 L50040 G |
| External Diameter | 150mm |
| Fuels | gas, oil, solid and multi-fuel |
Installation Guide
316/1mm stove pipe should always be installed 3 x the internal diameter away from any combustible materials such as plaster board ceilings or wood, e.g: a 6" diameter piece of 316 pipe should be 18" away from combustible materials.
Each joint made should be sealed with fire cement. 316 flue pipe is only to be used as a connecting piece of flue between the appliance (eg: woodstove) and the flue liner or chimney stack.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
