7" 1000mm Length
£66.77 £80.12
In stock
SKU
JSS100007
- 316 Grade Stainless Steel
- Temperatures up to 600°C
- Socket and spigot jointing system

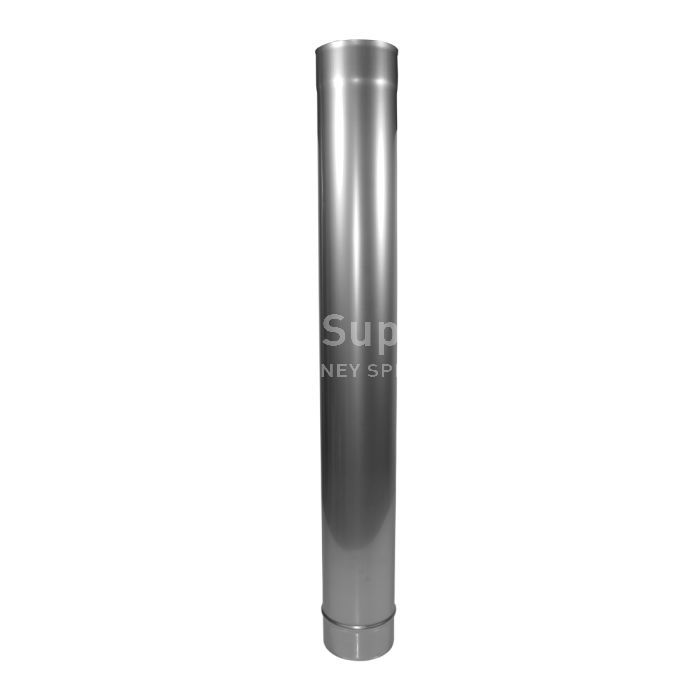

7" 1000mm Length 316 1mm Stove Pipe
1000mm length flue pipe (1mm thick) used to connect from your stove to either flue liner or twin wall insulated rigid flue pipe
Made From 316 Stainless Steel
| Type | Length |
|---|---|
| Material | Stainless Steel |
| Construction | Single Skin 316 Stainless Steel. 1mm thickness |
| Designation | EN 1856-1 T600 N1 D V2 L50040 G |
| Fuels | gas, oil, solid and multi-fuel |
Installation Guide
316/1mm stove pipe should always be installed 3 x the internal diameter away from any combustible materials such as plaster board ceilings or wood, e.g: a 6" diameter piece of 316 pipe should be 18" away from combustible materials.
Each joint made should be sealed with fire cement. 316 flue pipe is only to be used as a connecting piece of flue between the appliance (eg: woodstove) and the flue liner or chimney stack.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
