7" 500mm Length with door (316 1mm)
£77.44 £92.93
In stock
SKU
JSS5007D
- 316 Grade Stainless Steel
- Temperatures up to 600°C
- 500mm Length With Door
- Socket and spigot jointing system

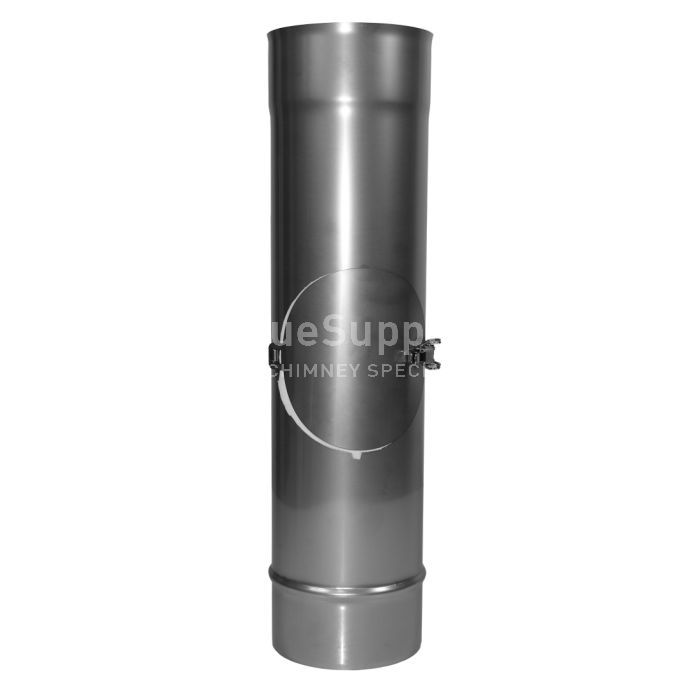

7" 500mm Length 316 1mm Stove Pipe With Door
500mm length flue pipe (1mm thick) with an inspection door used to connect from your stove to either flue liner or twin wall insulated rigid flue pipe.
Made From 316 Stainless Steel
| Type | Length |
|---|---|
| Material | Stainless Steel |
| Construction | Single Skin 316 Stainless Steel. 1mm thickness |
| Designation | EN 1856-1 T600 N1 D V2 L50040 G |
| External Diameter | 180mm |
| Fuels | gas, oil, solid and multi-fuel |
Installation Guide
316/1mm stove pipe should always be installed 3 x the internal diameter away from any combustible materials such as plaster board ceilings or wood, e.g: a 6" diameter piece of 316 pipe should be 18" away from combustible materials.
Each joint made should be sealed with fire cement. 316 flue pipe is only to be used as a connecting piece of flue between the appliance (eg: woodstove) and the flue liner or chimney stack.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
