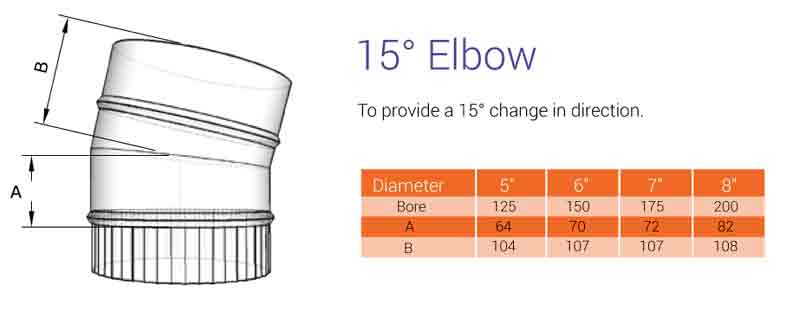

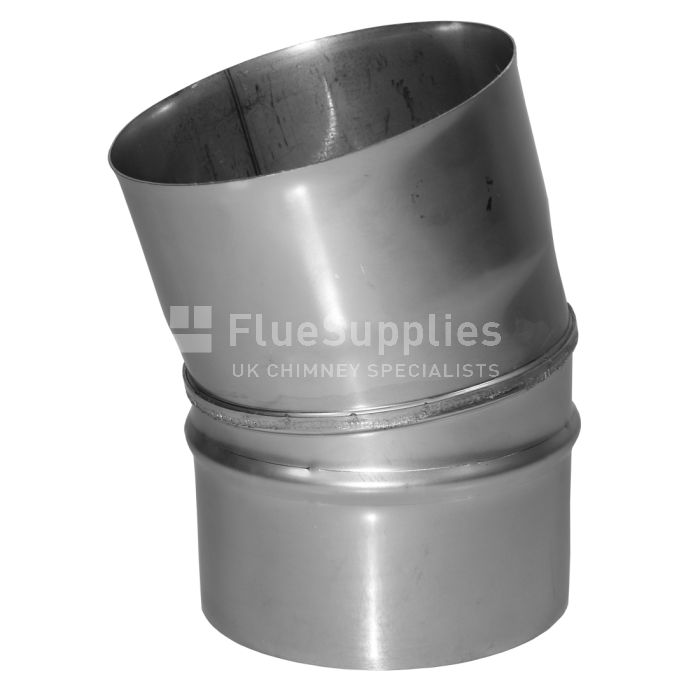

8" 15° Bend 316 1mm Stove Pipe
15° fixed bend stove pipe (1mm thick) used to offset the flue direction.
Made From 316 Stainless Steel
| Material | Stainless Steel |
|---|---|
| Construction | Single Skin 316 Stainless Steel. 1mm thickness |
| Designation | EN 1856-1 T600 N1 D V2 L50040 G |
| External Diameter | 200mm |
| Fuels | gas, oil, solid and multi-fuel |
Installation Guide
316/1mm stove pipe should always be installed 3 x the internal diameter away from any combustible materials such as plaster board ceilings or wood, e.g: a 6" diameter piece of 316 pipe should be 18" away from combustible materials.
Each joint made should be sealed with fire cement. 316 flue pipe is only to be used as a connecting piece of flue between the appliance (eg: woodstove) and the flue liner or chimney stack.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
