8" 90° Tee Inc Cap (316 1mm)
- 316 Grade Stainless Steel
- Temperatures up to 600°C
- 90° Tee Piece
- Inspection Tee Cap
- Socket and spigot jointing system

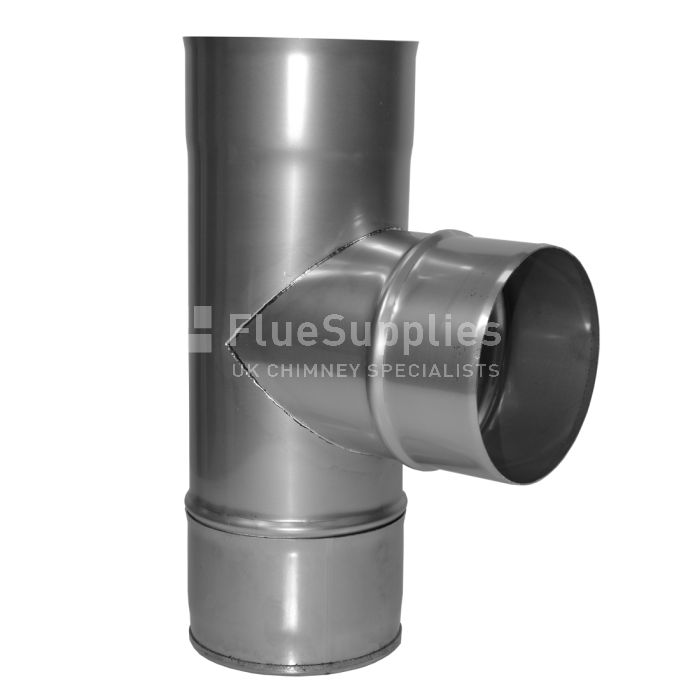

8" 90° Tee With Cap 316 1mm Stove Pipe
90° Tee and Cap (1mm thick) used to offset the flue direction.Tee cap gives Access for cleaning and inspection.
Made From 316 Stainless Steel
|Construction||Single Skin 316 Stainless Steel. 1mm thickness|
|Designation||EN 1856-1 T600 N1 D V2 L50040 G|
|Fuels||gas, oil, solid and multi-fuel|
316/1mm stove pipe should always be installed 3 x the internal diameter away from any combustible materials such as plaster board ceilings or wood, e.g: a 6" diameter piece of 316 pipe should be 18" away from combustible materials.
Each joint made should be sealed with fire cement. 316 flue pipe is only to be used as a connecting piece of flue between the appliance (eg: woodstove) and the flue liner or chimney stack.
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
