5" 45° Adjustable Offset - Stove Pipe
- Premium Vitreous Enamel
- Adjustable Offset Bend
- Extremely High Resistence to Heat

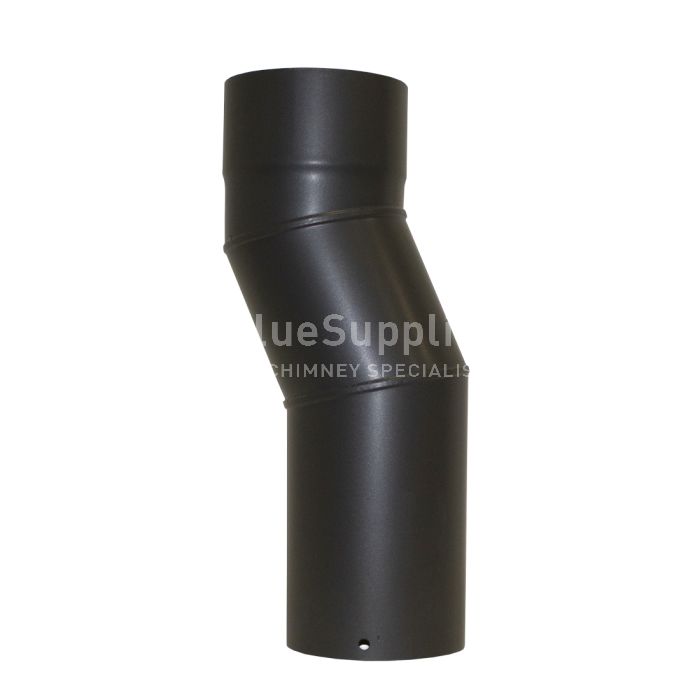

5" Adjustable Offset Bend Stove Pipe
Adjustable Offset Length Stove Pipe Stove Pipe is generally used to connect from your stove or appliance to either Flexible Flue liner or Twin Wall Insulated Flue.
This Item can be cut to Length or used as an adjustable piece by way of sliding the straight Section inside a previous section of vitreous.
It is NOT Two piece telescopic.
Type | Bend/Elbow |
---|---|
Material | Stainless Steel |
Construction | Manufactured in accordance with ISO9001-2008 using 1mm low carbon steel |
Designation | EN 1856-2 T600 N1 D Vm L80060 G375 NM |
Internal Diameter | 125mm |
Fuels | Oil, gas and Solid Fuels, for domestic heating appliances |
Installation Guide
Vitreous should always be installed 3 x the internal diameter away from any combustible materials.
Stove pipe should only be used as a connection piece and never used externally on any property.
Our stove pipe has a compression fit but we would always advise to use a thin layer of fire cement on each joint.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
