5" Register Plate (36" x 12")
- 36" x 12" Register Plate
- Adjustable Hole
- 2 Angle Brackets Included
- Galvanised Steel
5" Register Plate (36" x 12")

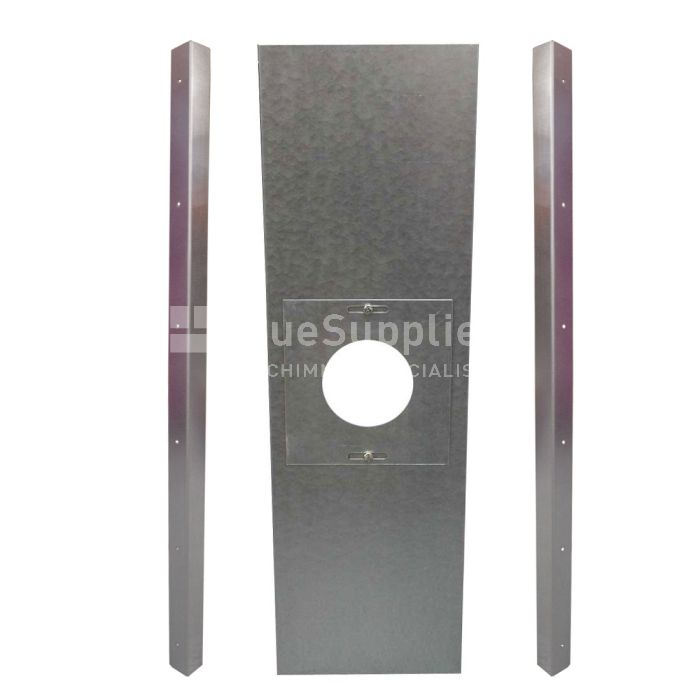

Used to seal off the stack at the bottom. Comes complete with adjustable plate for ease of installation and with 2 x angle brackets for fixing. Plate can be removed for inspection of chimney liner.
Please note: Adjustable plate has only front to back movement.
Manufactured from galvanised steel and comes complete with two angled support bar's so you can secure the main plate to the base of the stack.
BESPOKE SERVICE AVAILABLE: Are you looking for a specific size register plate?
We provide a bespoke register plate service where you can have any size, any dimension hole, need an access plate no problem. please click here to download the bespoke register plate form.
| Material | Galvanised Steel |
|---|---|
| Construction | 1.5mm Galvanised Steel |
| Fuels | Gas, Oil, Cured Dry Logs, Cured Dry Peat and Smokeless Fuels |
INSTALLATION GUIDE
Used to seal off the base of the chimney. This product can be cut on site to fit the base size of your chimney stack.
This product will support Vermiculite and stop debris from within the stack coming down the chimney and hitting your stove.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
