5" Top Stub
£58.32 £69.98
In stock
SKU
TWTS05
- Top Stub cowl used at the top of the flue system if no rain guard is required.
- CE approval.
- 316 Stainless Steel

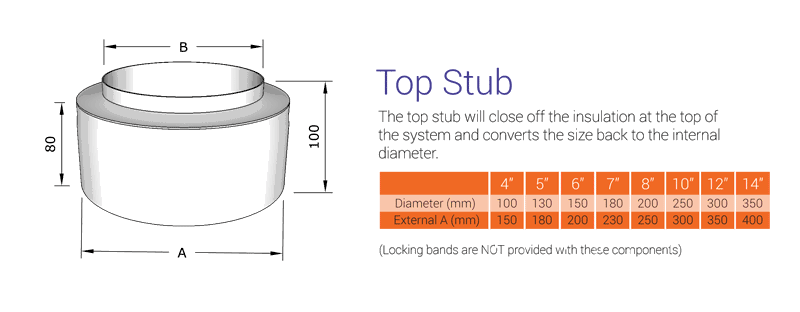

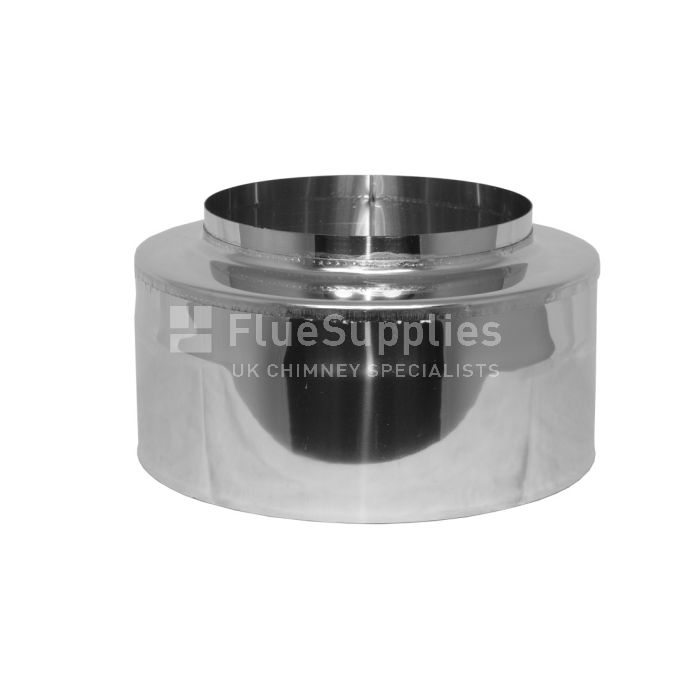

Twin Wall 5" Top Stub
Top Stub cowl used at the top of the flue system if no rain guard is required.
- 316 Stainless Steel.
- All of Jeremias products have been HETAS approved, quality tested and come with a 25 year warranty.
(Please note: We base all of our twin wall system on the internal diameter measurement. This product is not suitable for use with single skin stove pipe).
| Material | Stainless Steel |
|---|---|
| Construction | 0.4 L Grade 304 Stainless Steel, 316 Grade Stainless Steel Inner. |
| Warranty | 25 Years |
| Designation | EN1856-1 T450 N1 D V3- L50040 G60, EN1856-1 T600 N1 D VM- L20040 G70 |
| Internal Diameter | 125mm |
| External Diameter | 180mm |
| Fuels | Wood, Oil, Gas, Low Sulpher Coal |
| Special Notice: | Please be advised that all our Twin Wall products are only compatible with Jeremias Twin Wall Flue System and cannot be used with any other Brand of twin wall insulated flue. |
Installation Guide
Our twin wall insulated is a simple push-fit joint system. Build your system by placing each piece on top of the previous and push together to make the join. This is the simplest system to construct on the market today.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
