5" Fixing Kit 6
Flexible Flue Liner Fitting Kit 6

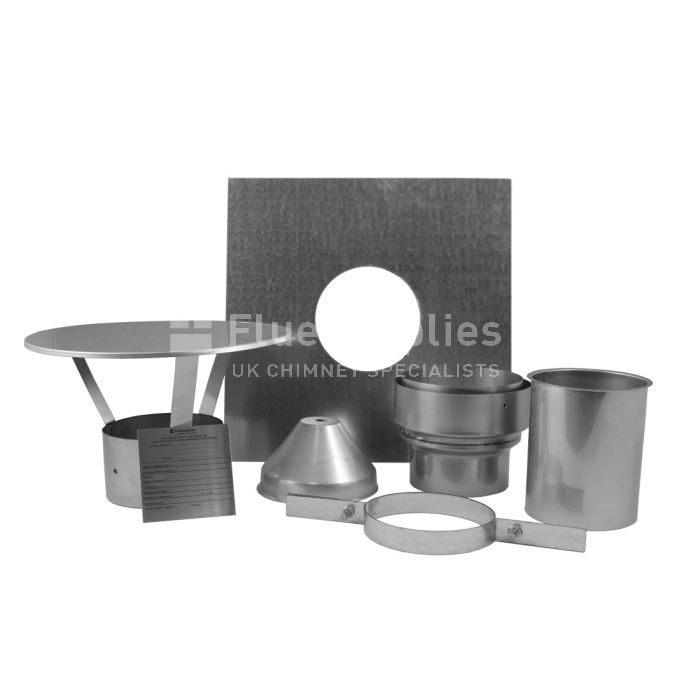

Fixing Kit (Flue Liner Pack 605) includes:
- 1 x 5 inch Top Clamp (Fits directly above the Top Plate to support the flexible liner).
- 1 x 5 inchTop Insert (Slides inside the top of the liner to give a more secure fixing for the clamp).
- 1 x 4 - 5 inch Increasing Adaptor (Connects 4" single skin stove pipe to 5" flexible liner).
- 1 x 5 inch Top Plate (Covers the hole at the top of the chimney stack and gives a secure point for the clamp to support the flexible liner).
- 1 x 5 inch Nose Cone (Fits to the end of the liner to help with installation).
- 1 x 5 inch Rain Cap (Secures to the top of the liner with self tapping screws. These are not supplied).
- 1 x Chimney Notice Plate (This is a Legal Requirement in the UK)
*Please be advised that individual kit components are non-refundable.
Please see individual products for dimensions on the items included in this pack.
Pack 605:
5" Chimney Notice Plate:
5" Top Clamp:
4" - 5" Increasing Adaptor:
5" Top Insert:
5" Top Plate:
5" Nose Cone:
5" Rain Cap:
Type | Fixing Kit |
---|
Installation Guide
Please see individual products for installation instructions on the items included in this pack.
Pack 605:
5" Chimney Notice Plate: 5" Top Clamp: 4" - 5" Increasing Adaptor:5" Top Insert: 5" Top Plate: 5" Nose Cone: 5" Rain Cap:
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
