6" - 7" Increasing Register Plate Adaptor
£79.53 £95.44
In stock
SKU
RPIA07
- 300mm x 300mm Plate
- Increases Diameter by 1"
- Connects to Flue Line & Stove Pipe
- Stainless Steel

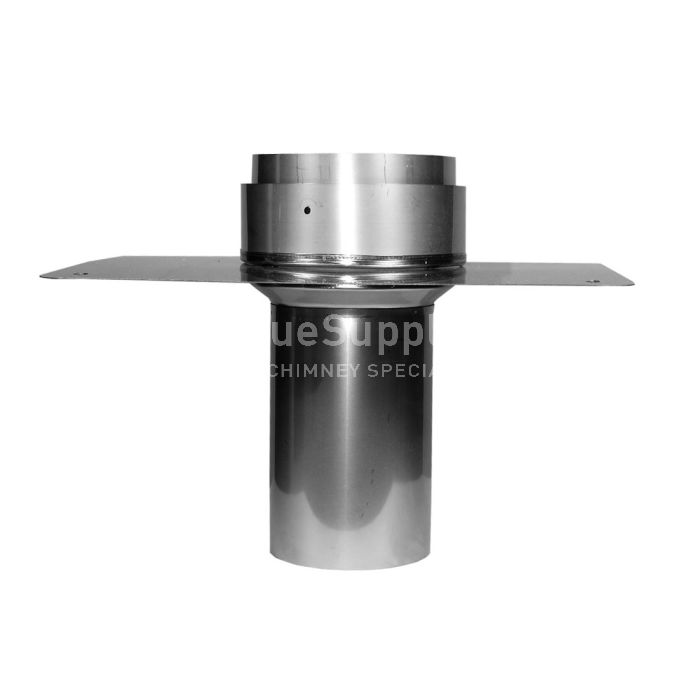

6" - 7" Increasing Register Plate Flue Adaptor
Connects 7" diameter flue liner to 6" stove pipe at the bottom of the chimney stack.
- 300mm x 300mm Plate
- Stainless Steel
| Material | Stainless Steel |
|---|---|
| Construction | 0.7mm Stainless Steel |
| Fuels | Gas, Oil, Cured Dry Logs, Cured Dry Peat and Smokeless Fuels |
INSTALLATION GUIDE
Secure the bottom of the liner to the adaptor using self tapping screws and seal with either fire cement/silicone sealant.
Use the same procedure to connect adaptor to either your appliance or vitreous/single wall flue pipe.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
