7" Adjustable Adaptor to Stove Pipe
£39.70 £47.64
In stock
SKU
FAL1307
- Adjustable
- 200mm Long
- Manufactured in the UK
- Stainless Steel

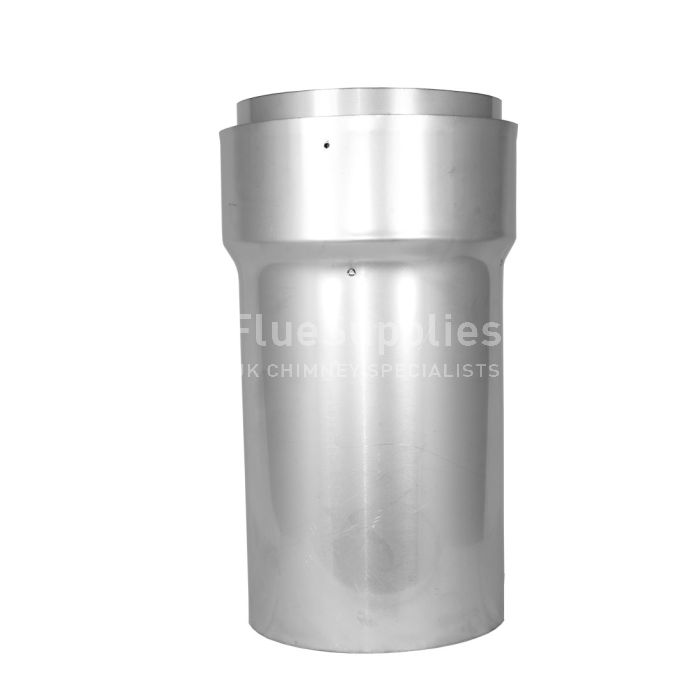

7" Adjustable Flue Adaptor to Stove Pipe
Connects 7" single skin stove pipe to 7" flexible flue liner at the bottom of the chimney stack.
- Cut to Size Adjustment
- 200mm in Length
| Type | Adaptor |
|---|---|
| Material | Stainless Steel |
| Construction | 0.7mm Stainless Steel |
| Internal Diameter | 175mm |
| Fuels | Gas, Oil, Cured Dry Logs, Cured Dry Peat and Smokeless Fuels |
INSTALLATION GUIDE
This adaptor will slide inside our vitreous flue pipe making this product suitable for difficult installations where a degree of flexiblity is required, (this product can be cut to length). It can be used to fix liner to vitreous through a register plate. This product, in effect, creates a telescopic length, e.g. 200mm length for connection to vitreous pipe.
Installation
Secure the bottom of the liner to the adaptor using self tapping screws and seal with either fire cement/silicone sealant then use the same procedure to connect adaptor to vitreous/single wall flue pipe.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
