7" Gas Suspending Cowl Square Based
£102.94 £123.53
In stock
SKU
SQSG07
- Easy to install means less time on the roof
- 335mm x 335mm base.
- No need for Top Plate, Sleeve and Clamp
- Designed to Fit square Chimney Pots
- Gas Mesh

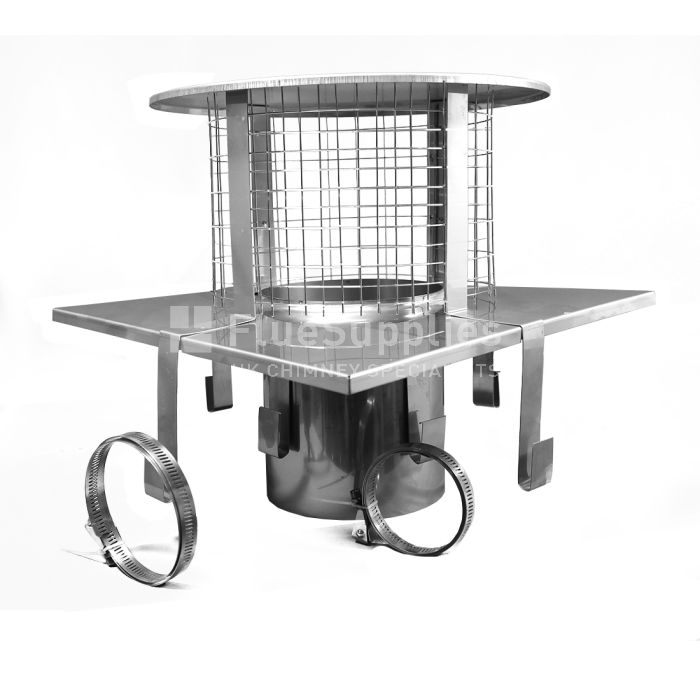

7" Gas Square Based Suspending Cowl
Used to suspend a flexible liner from the top of a chimney pot.
- Easy to install means less time on the roof
- 335mm x 335mm base.
- No need for Top Plate, Sleeve and Clamp
- Fits square Pots.
- For More Information, see Chimney cowls page
| Type | Cowls/Terminals |
|---|---|
| Material | Stainless Steel |
| Construction | 0.7mm Stainless Steel |
| Fuels | Cured Dry Logs, Cured Dry Peat and Smokeless Fuels |
INSTALLATION GUIDE
Used as a one-piece system to secure the liner at the top of the stack. This product is mainly used where a clay pot is in situe (as there is no need to remove the pot to install). Simply slide the spigot of the cowl into the end of the liner and secure by tightening the smaller jubilee clip. Then, sit the cowl on the end of the pot and secure using the larger jubilee clip in the same way to the chimney pot itself.
This cowling is specifically designed to fit square chimney pots.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
