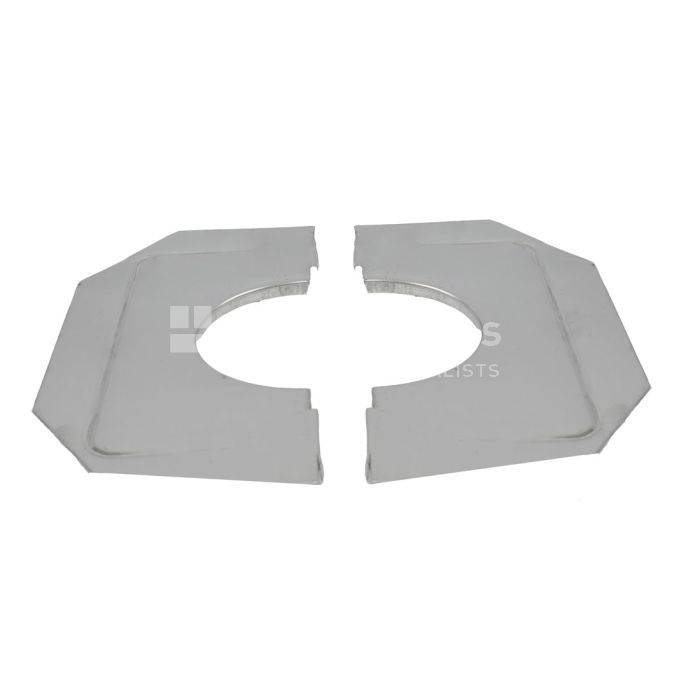

7" Gas Clamp and Plate
- Made of Aluminium
- Be used with gas or 28 Sec Oil fuels only
7" Gas Clamp and Plate
Used to seal off the top of the stack and support the liner.
- Made of Aluminium
- Be used with gas or 28 Sec Oil fuels only
PLEASE NOTE: THIS TOP PLATE AND CLAMP IS NOT STRONG ENOUGH TO USE WITH SOLID FUEL LINER.

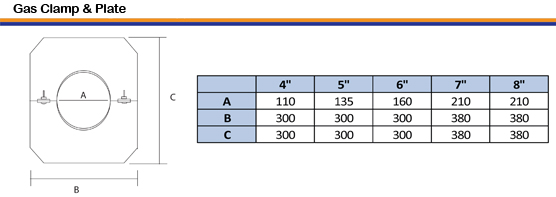

Type | Top Support |
---|---|
Material | Aluminum |
Internal Diameter | 175mm |
Fuels | Gas, Oil |
Installation Guide
Secure the top of the liner at the top of the stack using two piece plate and bolts provided. Once you have cut the liner at the top of the chimney stack, slide the two plates around the chimney liner at the point of termination and secure with bolts provided. The plate should now lay on the top of the chimney stack. If you are fitting a terminal, remember to leave about 4 inches of liner above the plate so you can secure it.
PLEASE NOTE: THIS TOP PLATE AND CLAMP IS NOT STRONG ENOUGH TO USE WITH SOLID FUEL LINER.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
