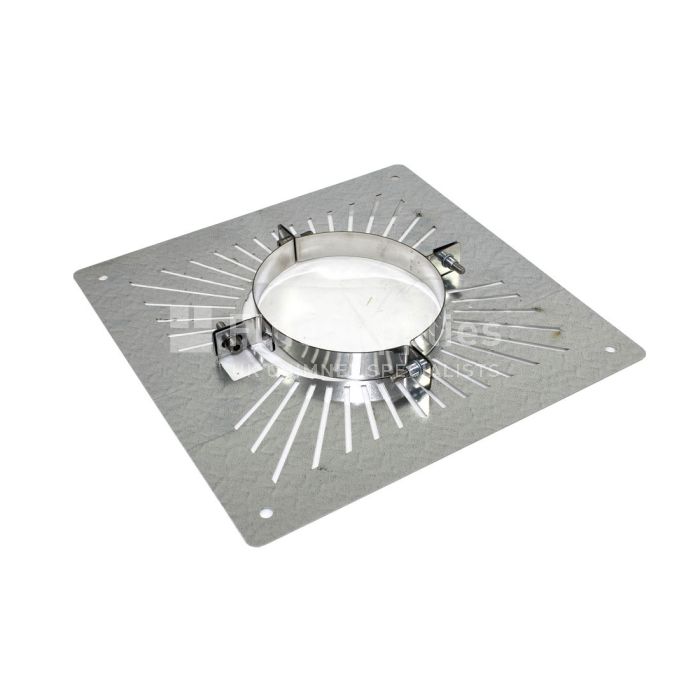

7" Ventilated Ceiling Support
£82.08 £98.50
In stock
SKU
TWVCS07
- Ventilated Ceiling support Supplied complete with a support collar and is for use where the flue system penetrates combustible floor.
- Heavy Duty Galvanised Steel
- 316 Stainless Steel Bracket

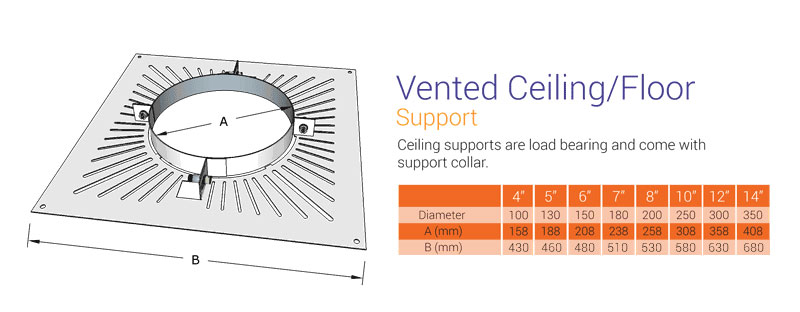

Twin Wall 7" Ventilated Ceiling Support
Ventilated Ceiling support Supplied complete with a support collar and is for use where the flue system penetrates combustible floor.
- Heavy Duty Galvanised Steel
- 316 Stainless Steel Bracket
- CE approval.
- All of Jeremias products have been HETAS approved, quality tested and come with a 25 year warranty.
(Please note: We base all of our twin wall system on the internal diameter measurement).
| Material | Galvanised Steel |
|---|---|
| Construction | 1.5mm Heavy Duty Galvanised Steel - 0.4mm 316 Grade Stainless Steel Bracket |
| Warranty | 25 Years |
| Designation | EN1856-1 T450 N1 D V3- L50040 G60, EN1856-1 T600 N1 D VM- L20040 G70 |
| External Diameter | 225mm |
| Fuels | Wood, Oil, Gas, Low Sulpher Coal |
| Special Notice: | Please be advised that all our Twin Wall products are only compatible with Jeremias Twin Wall Flue System and cannot be used with any other Brand of twin wall insulated flue. |
Installation Guide
Our twin wall insulated is a simple push-fit joint system. Build your system by placing each piece on top of the previous and push together to make the join. This is the simplest system to construct on the market today.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
