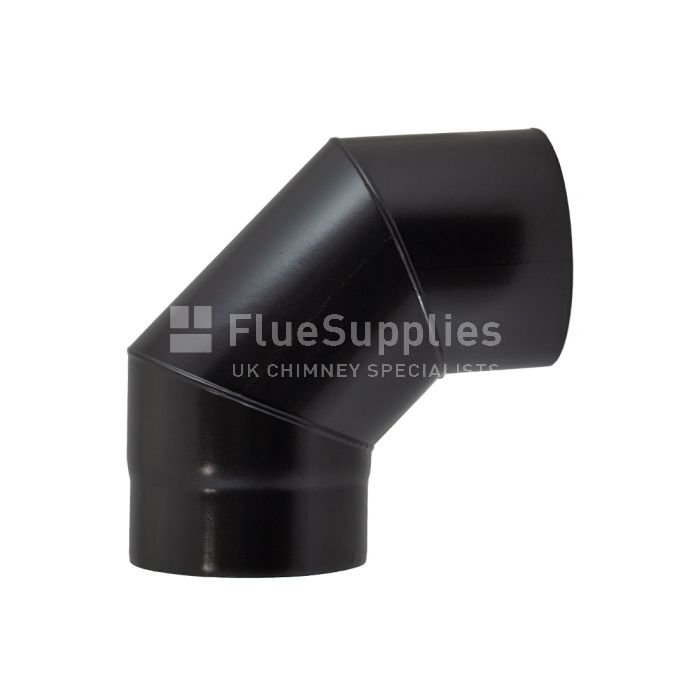

4" 90° Bend Stove Pipe
£51.46 £61.75
In stock
SKU
SAB9004
- 10 Years Warranty
- 90° Elbow/Bend
- Black Vitreous Enamel Coating
4" 90° Bend Stove Pipe
This component is used when a 90° change in direction in the flue run is required.
This component minimises the resistance to the flow of with the flue gas because of the angle created with the vertical axis.
Vitreous Stove Pipe is generally used to connect from your stove or appliance to either Flexible Flue liner or Twin Wall Insulated Flue.
| Type | Bend/Elbow |
|---|---|
| Material | Stainless Steel |
| Construction | 1.2mm Steel, Vitreous Enamel Black Coating |
| Warranty | 10 Years |
| Designation | EN 1856-2 T600 N1 W V2 L80100 G450NM |
| Internal Diameter | 100mm |
| Fuels | Gas, Oil, Solid Fuels, Wood, Pellets, Peat |
Installation Guide
Vitreous should always be installed 3 x the internal diameter away from any combustible materials.
Stove pipe should only be used as a connection piece and never used externally on any property.
Our stove pipe has a compression fit but we would always advise to use a thin layer of fire cement on each joint.
BUILDING REGULATIONS
Download Building Regulations Document J (effective October 2010) below
(Right click link, then select "save file as..")
